product description
SOR combined air flotation device can effectively separate suspended particles, oil and other fats in liquid. By releasing the microbubbles in the water, the particles suspended in the liquid will adhere to the bubbles and float up as the microbubbles rise. The suspended matter is brought to the surface of the liquid and scraped off by the scraping system.
Scope of application
Such as paper-making white water pulp recovery and clean water reuse, oil refining wastewater, oil pollution separation, printing and dyeing wastewater color and impurity removal, food processing, sludge concentration, electroplating industry, pharmaceutical industry, leather industry and other industrial wastewater treatment.
Outstanding advantages
1. The equipment is integrated, and it can be debugged and operated after connecting the inlet and outlet;
2. Small footprint, power saving, automatic operation without supervision;
3. The pressurized jet does not block the dissolved gas, the dissolved gas efficiency is 98.75%, and the particle size of the microbubbles is 15-30 microns;
4. Provide you with the best quality air flotation solutions for different sewage;
working principle

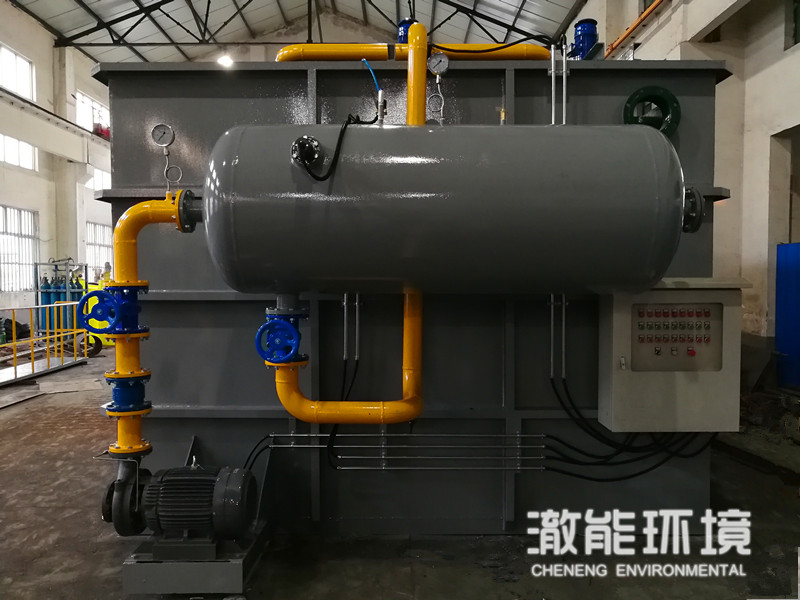

SOR combined air flotation device consists of air flotation tank body, dissolved air system, dissolved air return pipeline, dissolved air water release device, slag scraping device (combined type, driving type and chain plate type can be used according to user needs) and electric control cabinet And other components. Air flotation separation technology means that the air and water are fully integrated into the water under a certain working pressure, and strive to be in a saturated state, and then the pressure dissolved gas water is released through decompression, and a large number of fine bubbles are generated. The suspended flocs in the water are in full contact, so that the suspended flocs in the water adhere to the microbubbles and float to the water surface with the bubbles to form scum and scrape off the scum, thereby purifying the water.
