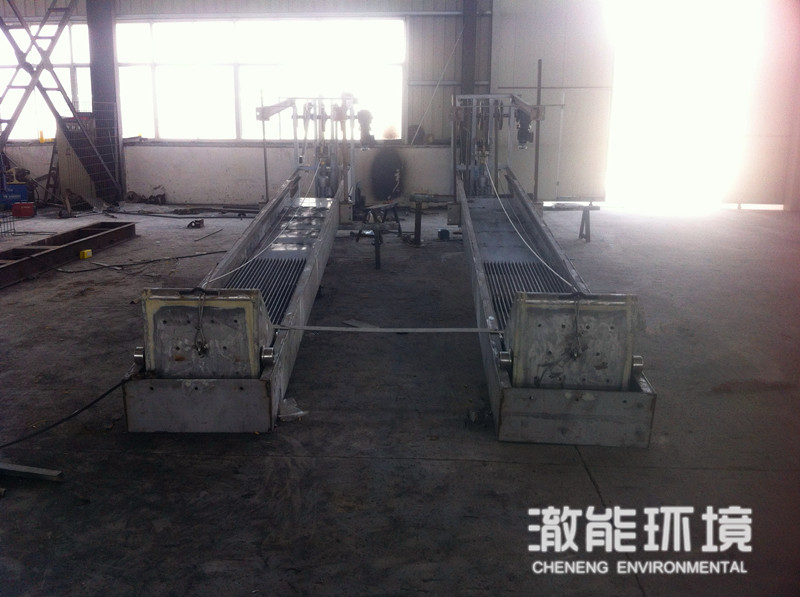

CSY three rope wire rope grille decontamination machine
product description
CSY three-cable wire rope grille decontamination machine is used to intercept suspended solids and bottom sediments in sewage, protect the pump and impeller of the equipment, and reduce the processing load of subsequent equipment. Scope of application At present, it is mainly used to intercept coarse solid suspended solids in waterworks, rainwater pumping stations, cooling water intakes of power plants, urban sewage treatment plants and industrial wastewater. Outstanding advantages 1. The frame structure is unique and adopts a split type, that is, the upper frame and the lower grille group are not integrated; 2. The rake bucket adopts a special large-capacity, heavy-duty "grab bucket", which is guided by rollers on both sides and wire rope traction to ensure its smooth operation; 3. There is a discharge scraper on the upper frame, which can effectively scrape the dirt in the rake bucket to the discharge port for discharge, and the discharge is clean and thorough; 4. The lifting and opening and closing of the rake bucket are two independent drive systems, which operate according to the set program under the control of the electrical system; 5. The equipment is easy to operate, and the operation of the equipment can be directly controlled locally or remotely; working principle Its frame is fixed on the upper end of the well head, and the water grid surface is composed of fixed grid bars. When sewage flows through the grid surface, debris larger than the grid gap is intercepted; the rake bucket is first driven by the rake motor and stops after the opening and turning action is completed. , And then driven by the lifting motor, and under the control of the height limiter, it descends to the bottom of the grille shaft along the guide rails on both sides and then stops, and automatically turns on the rake turning motor again. After completing the rake action, it stops and the lifting motor starts again. Pulled by the wire rope, the rake bucket is inserted into the gap of the grid to pick up the intercepted debris and rise along the grid surface and slag retaining. Under the control of the height limiter, the lifting motor stops after reaching the discharge port position. , The cleaning scraper at the upper frame will automatically scrape off the debris with the rising action of the rake bucket, and drop it from the discharge port onto the conveyor or garbage trolley, completing the one-time cleaning process.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
