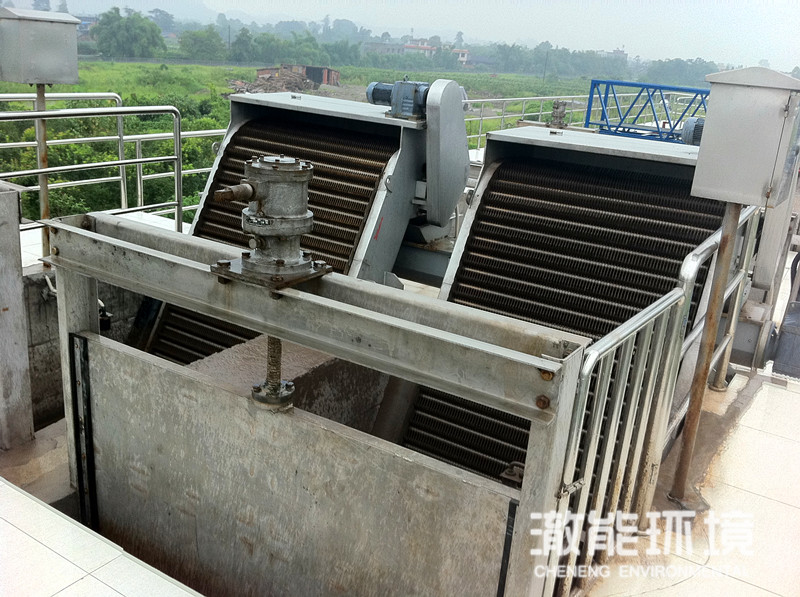

CFH rotary grille decontamination machine
product description
CFH rotary grille decontamination machine can automatically and continuously intercept (remove) sewage and solid particles and floating objects in the river. Scope of application Used in the water inlet of waterworks and power plants in municipal sewage treatment. There are more applications in industrial sewage treatment, such as: food processing, textile printing and dyeing, leather, paper and other industrial sewage can be used. Outstanding advantages 1. High separation efficiency, low power consumption and corrosion resistance. 2. High degree of automation, unattended. 3. Simple operation, can be controlled locally or far beyond working principle The CFH rotary grille decontamination machine is assembled by a unique rake tooth into a set of rotary grille chains. Driven by the motor reducer, the rake tooth chain rotates against the direction of the current. When the rake chain runs to the upper part of the equipment, due to the guide of the sheave wheel and the curved rail, a relative self-cleaning movement occurs between each group of rake teeth, and most of the solid matter falls by gravity. The other part relies on the reverse movement of the cleaner to clean up the debris stuck to the rake teeth. According to the direction of water flow, the rake chain is similar to the grille, and the rake tooth gap assembled on the rake chain shaft can be selected according to the conditions of use. After the rake teeth separate the solid suspended matter in the fluid, the water can flow smoothly. The whole working process is continuous or intermittent.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
