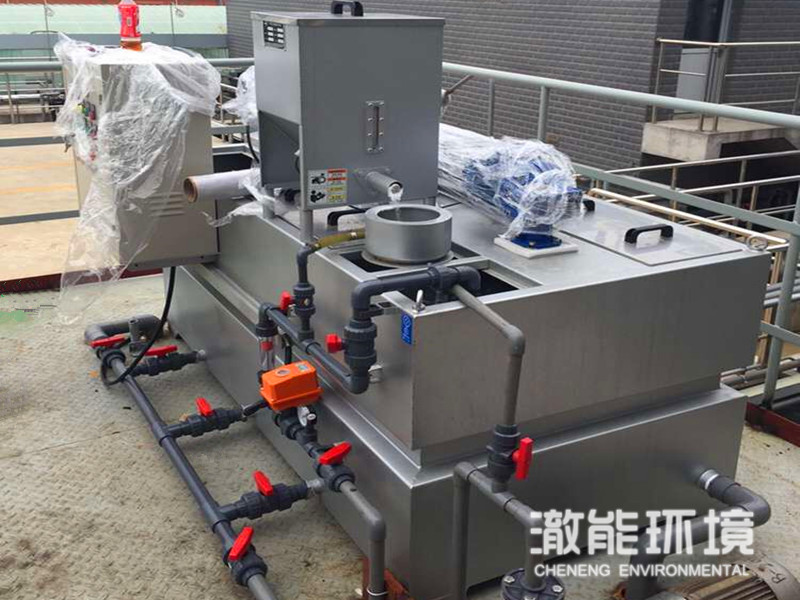

CPT automatic dosing device
product description
The CPT automatic dosing device is a turnkey automatic equipment for continuous preparation and dosing of polymer solutions. The raw material for its preparation can be dry powder medicine or liquid chemical medicine.
Scope of application
It can be widely used in municipal sewage treatment, sewage treatment plants, paper mills and other process treatment industries.
Outstanding advantages
1. Three tanks in one (prefabricated mixing tank, homogeneous maturation tank, solution storage tank) continuous preparation, simple operation;
2. It has the dual feeding function of dry powder and liquid (optional) polymer to meet different needs;
3. Both the dosage of dry powder and the water flow rate are adjustable, and the concentration of the solution required for preparation can be adjusted arbitrarily;
4. The ingenious design of the high-precision conveying and pre-soaking device for dry speculation can reduce the occurrence of granulation, reduce the waste of medicine and avoid the blockage of pipelines or equipment;
5. The dry powder conveyor has the function of anti-condensation heating and heat preservation, which can effectively avoid the damp, caking or deterioration of the medicine;
6. The equipment is controlled by PLC to control the whole preparation process, realize automatic intermittent operation and pause and cross stirring function, so that the preparation solution is evenly mixed;
7. When the dry powder level in the hopper is too low, an audible and visual alarm signal will be issued to remind the operator to feed;
8. The solution in the solution storage tank is diluted to the required concentration by a dosing pump (optional) and water online, and a homogeneous solution is obtained through a pipeline static mixer (optional).
working principle
The preparation process of the polymer solution is completed step by step through each solution tank. The solution tanks are separated to ensure the best reaction time and constant concentration in each solution tank. The most important thing is to avoid any direct path (short flow) between the prefabricated mixing tank and the solution storage tank. The CPT automatic dosing device is automatically controlled by the control box. This control box is connected to the level gauge installed on the solution storage tank. Once the level gauge reaches the "low position", the water inlet solenoid valve is triggered to open, and the dry speculation starts at the same time to start dispensing . Both the size of the dry dosage and the amount of water can be accurately adjusted to obtain an accurate concentration. Once the level gauge reaches the "high level", this cycle process stops and the mixer continues to work.
|
型号
|
CPT500
|
CPT1000
|
CPT1500
|
CPT3000
|
CPT5000
|
CPT8000
|
|
****制备量（l/h）
|
500
|
1000
|
1500
|
3000
|
5000
|
8000
|
|
箱体有效容积（l）
|
600
|
1400
|
2000
|
3600
|
6000
|
9500
|
|
PAM****投加量（kgDS/h）
|
1.5
|
3.0
|
4.0
|
8.0
|
16.0
|
32.0
|
|
进水流量（m3/h）
|
2.0
|
4.0
|
5.0
|
10.0
|
20.0
|
40.0
|
|
进水压力（MPa）
|
0.2~0.5
|
|
干粉机功率（kw）
|
0.18
|
0.18
|
0.18
|
0.18
|
0.18
|
0.18
|
|
搅拌机功率（kw）
|
0.55
|
2x0.55
|
2x0.75
|
2x1.1
|
2x1.5
|
2x1.5
|
|
粉体料斗容积（l）
|
50(可选：80,100,200)
|
|
