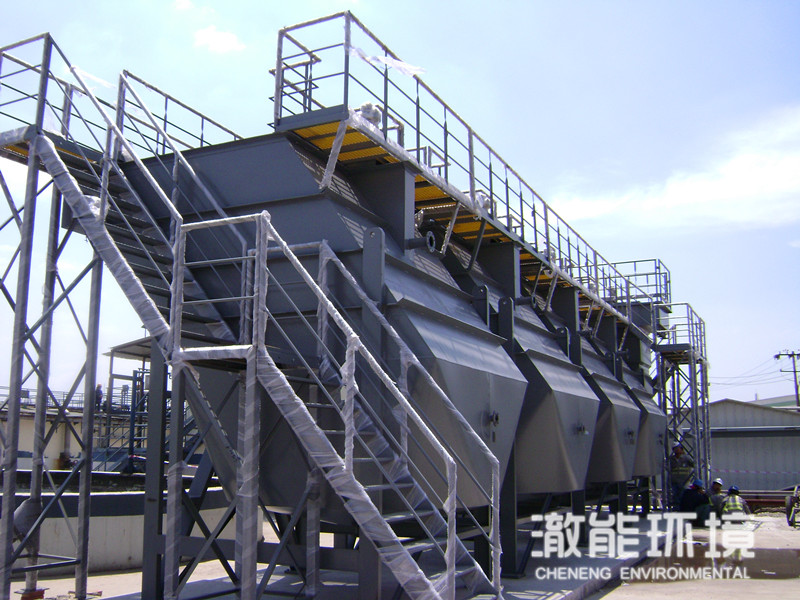

SAL Lanmei La Inclined Plate Sedimentation Tank product description SAL Lameira inclined plate sedimentation tank can effectively separate solids in liquid, create a good laminar flow environment, and achieve better sedimentation effects. Scope of application Application areas: electroplating wastewater, papermaking wastewater, industrial production wastewater, pre-filtration treatment, filtered effluent and backwash water, river water purification, sludge concentration, etc. Outstanding advantages 1. Small area: lengthen the inclined plate to 1.5m, improve the separation efficiency of the settler, and save 1.5~2 times the area; 2. Uniform water distribution: the equal resistance water distribution and supernatant are directly collected to ensure the balance of the water distribution of each group of inclined plates; 3. Good hydraulic conditions: no hydraulic dead angles and whirlpools; 4. The inclined plate is not blocked: the inclined angle of the inclined plate is 60 degrees, the distance between the plates is 8-10cm, and the backwash pipe is set in the inclined plate area; 5. Rugged and durable: 6mm rigid PVC is used as the separation sheet, modular block embedded, high strength and easy to wash and maintain; 6. Convenient transportation: the total height of the equipment does not exceed 3m, and it can be transported to the destination by standard containers; working principle The working principle of the SAL Lameira inclined plate sedimentation tank is based on the shallow tank theory, and the sedimentation efficiency of the sedimentation tank is only related to the sedimentation area. In the inclined plate sedimentation tank, the sedimentation area is the sum of the horizontal projection areas of all inclined plates. The practice of this theory reduces the floor space of the inclined plate sedimentation tank by 90% compared with the traditional sedimentation tank, which doubles the sedimentation efficiency. 参数   型号 SAL5 SAL10 SAL20 SAL30 SAL40 SAL50 SAL60 SAL80 SAL100 处理水量（m3/h） 5 10 20 30 40 50 60 80 100 电动机功率（kw） 无 0.55 刮泥机速度（m/min） 无 2.26 2.1 2.3 2.5 2.55 2.64 2.82 斜板数量（块） 10 15 38 46 50 56 58 60 64 斜板规格（mm） 1060*1200 1350*1465 750*1600 900*1600 1050*1600 1100*1600 1150*1800 1200*2000 1300*2000 当量沉淀面积（㎡） 6.36 14.83 22.8 33.12 42 49.7 60.03 72 83.2 设备长L（mm） 2400 3000 3750 4050 4340 4525 4725 4975 5175 设备宽W（mm） 1340 1740 2220 2520 2820 3090 3190 3290 3490 设备高H（mm） 3050 3200 4650 4650 4700 4900 5100 5330 5330 进水管径 DN80 DN100 DN125 DN150 DN200 出水管径 DN80 DN100 DN125 DN150 DN200 排泥管径 DN150 DN200
