Sand water separator
product description

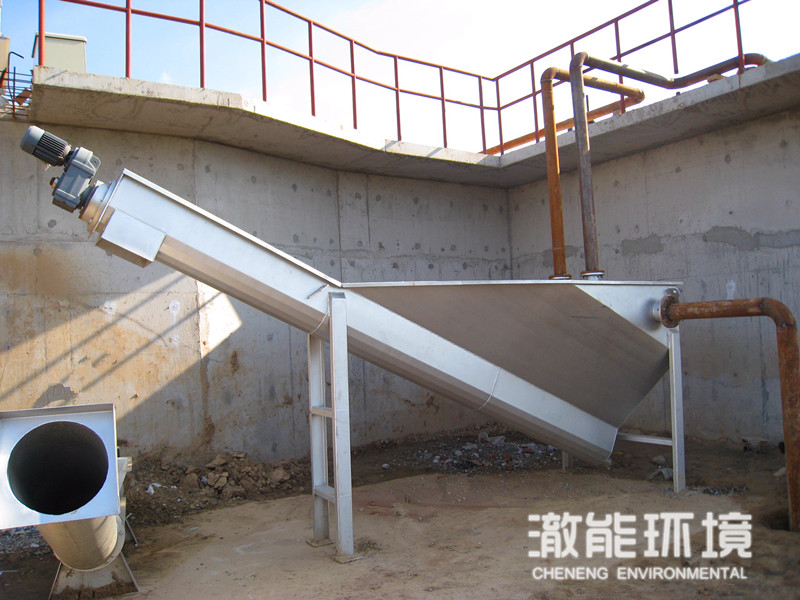

The CGS spiral sand-water separator is a supporting equipment for the grit removal system of the grit tank, and its function is to separate the sand-water mixture discharged from the grit tank. Scope of application It is used to separate the sand and water mixture from the grit tank in the urban sewage treatment or industrial wastewater treatment. Outstanding advantages 1. The separation efficiency can reach 96%~98%, and particles with a particle size ≥0.2mm can be separated; 2. It adopts shaftless spiral and no water bearing, which is convenient for maintenance; 3. Compact structure and light weight; 4. The new type of transmission device, its key product-the reducer is an advanced shaft-mounted type, no coupling is required, and the installation and centering are convenient; 5. The lining strip is quick-installed, easy to replace; 6. The screw axial position is adjustable, which is convenient to adjust the safety gap between the tail and the box wall; working principle When the CGS spiral sand-water separator is working, the sand-water mixed liquid enters the water tank from the top of one end of the separator, and the heavier sand in the mixed liquid will be deposited on the bottom of the trough. The bottom of the U-shaped groove is lifted, and after leaving the liquid level, it continues to move for a certain distance. After the sand is fully dehydrated, it is discharged to the sand bucket through the sand discharge port, and the water separated from the sand is discharged from the overflow port and sent to the factory to enter the pool.
|
||||||||||||||||||||||||||||||||||||||||||
