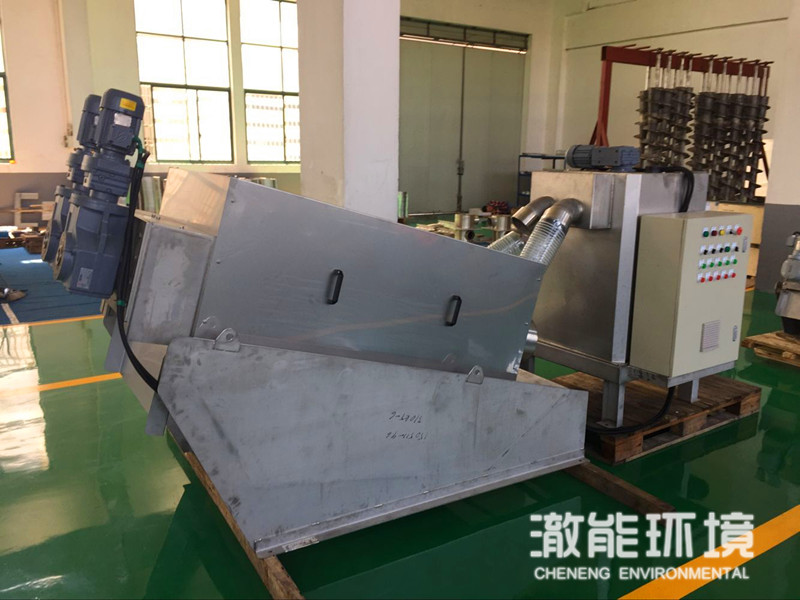

CSD stacked screw dehydrator product description The CSD screw dehydrator is a device that combines filtration, concentration and squeezing technology. It uses the relative movement between the fixed and moving rings in the concentration chamber to discharge the filtrate. Scope of application Suitable for industrial sewage: food processing, tanning, chemical industry, slaughter, pharmaceutical, papermaking, etc., as well as municipal sewage. Outstanding advantages 1. Low operating cost: less than 40% equivalent to belt filter press and less than 20% equivalent to centrifugal dehydrator; 2. Power saving: less than 5% of the centrifuge; water saving: less than 0.1% of the belt filter press; medicine saving: 60% medicine saving on average; 3. Small size: saving investment in the dehydration room; no blockage: the nemesis of oily fiber sludge; working principle The main body of the CSD screw dewatering machine is composed of multiple fixed rings, swimming rings and spiral filter parts, which organically combines filtration and concentration technology and pressing technology to complete the thickening and pressing and dewatering of sludge in one cylinder; in the thickening chamber , It uses the relative swimming between the fixed and moving laminations to quickly discharge the filtrate without clogging; in the dehydration chamber, the continuous contraction of the volume of the spiral chamber is used to enhance the internal pressure and the pressure regulation mechanism of the back pressure plate, with unique subtleties The filter mode replaces the traditional filter cloth and centrifugal filtration method, and its advanced solid-liquid separation and self-cleaning technology will create a new era of sludge dewatering. 机型 DS标准处理量 污泥处理量 低浓度→高浓度 2000mg/L 5000mg/L 10000mg/L 20000mg/L 25000mg/L 50000mg/L CSD101 3~kg/h 5~kg/h 1.5m3/h 0.6m3/h 0.5m3/h 0.25m3/h 0.2m3/h 0.1m3/h CSD131 6~kg/h 10~kg/h 3m3/h 1.2m3/h 1m3/h 0.5m3/h 0.4m3/h 0.2m3/h CSD132 12~kg/h 20~kg/h 6m3/h 2.4m3/h 2m3/h 1m3/h 0.8m3/h 0.4m3/h CSD202 18~kg/h 30~kg/h 9m3/h 3.6m3/h 3m3/h 1.5m3/h 1.2m3/h 0.6m3/h CSD301 30~kg/h 50~kg/h 15m3/h 6m3/h 5m3/h 2.5m3/h 2m3/h 1m3/h CSD302 60~kg/h 100~kg/h 30m3/h 12m3/h 10m3/h 5m3/h 4m3/h 2m3/h CSD303 90~kg/h 150~kg/h 45m3/h 18m3/h 15m3/h 7.5m3/h 6m3/h 3m3/h CSD352 120~kg/h 200~kg/h 60m3/h 24m3/h 20m3/h 10m3/h 8m3/h 4m3/h CSD353 180~kg/h 300~kg/h 90m3/h 36m3/h 30m3/h 15m3/h 12m3/h 6m3/h 机型 螺旋轴规格 泥饼排出口 离地面距离（mm） 机械尺寸（mm） 净重 运行重量 长L 宽W 高H CSD101 Φ100×1 215 1816 756 1040 190kg 280kg CSD131 Φ130×1 250 1969 756 1040 205kg 300kg CSD132 Φ130×2 250 2069 910 1040 275kg 420kg CSD202 Φ200×2 350 2500 935 1270 470kg 680kg CSD301 Φ300×1 495 3255 985 1600 820kg 1230kg CSD302 Φ300×2 495 3455 1295 1600 1350kg 2050kg CSD303 Φ300×3 495 3605 1690 1600 1820kg 2810kg CSD352 Φ350×2 585 4140 1550 2250 2450kg 3400kg CSD353 Φ350×3 585 4420 2100 2250 3350kg 4850kg 机型 电机功率（kw） 清洗用水压 清洗用水量（L/h） 维护频度 易损件更换周期（年） 螺旋轴 搅拌机 合计 螺旋轴 活动环 CSD101 0.1 0.1 0.2 0.1Kpa | 0.2Kpa （无需高压冲洗装置） 24 5分钟/天 3.4 1.7 CSD131 0.1 0.1 0.2 24 3.4 1.7 CSD132 0.2 0.1 0.3 48 3.4 1.7 CSD202 0.4 0.4 0.8 64 3.4 1.7 CSD301 0.4 0.4 0.8 40 1.1 3.4 CSD302 0.8 0.4 1.2 80 1.1 3.4 CSD303 1.2 0.75 1.95 120 1.1 3.4 CSD352 3.0 0.75 3.75 144 1.1 3.4 CSD353 4.5 1.5 6.0 216 1.1 3.4
