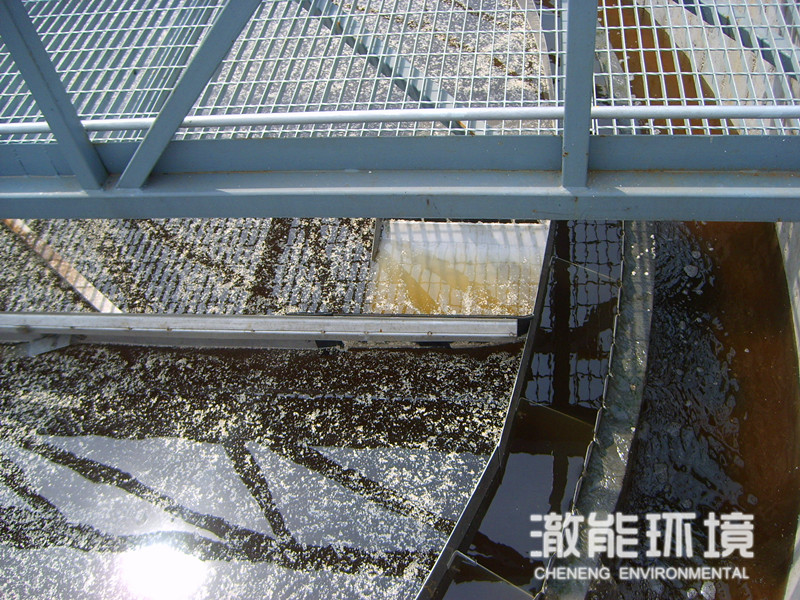

CZG central drive mud scraper
Product description
The CZG central drive mud scraper is suitable for small and medium-sized amplitude sedimentation tanks with central water inlet, peripheral water outlet, and central mud discharge. Scope of application Mainly used in urban sewage treatment plants and industrial wastewater treatment engineering sedimentation tanks. Outstanding advantages 1. The structure is simple, the reliability is high, and the maximum can be adapted to the 20m sedimentation tank; 2. Adopt high-performance drive device, with overload protection mechanism and torque display device; 3. Optional materials: carbon steel epoxy anti-corrosion, carbon steel hot-dip galvanizing, stainless steel SS304 or SS316L; 4. Optional: central deflector, V-shaped water outlet weir, slag skimmer (slag baffle and bracket, slag skimmer, slag discharge tube, etc.); working principle CZG central drive mud scraper is suitable for pools with pool diameters less than 18m. It consists of working bridge, driving device, drive shaft, scraper arm and scraper, zipper, underwater bearing, mud bucket mixing paddle, steady flow cylinder and system control cabinet. During operation, the driving device installed on the working bridge drives the transmission shaft to rotate. When the transmission shaft rotates, the scraper arms on both sides rotate around the center axis of the pool. A set of scrapers and peripheral slag baffles installed on the scrapers are scraped along with the scraper. During the rotation of the arm, the sludge settled at the bottom of the pool is scraped toward the mud collecting pit in the center of the pool. At the same time, the scum on the liquid surface is concentrated in the tapered area formed by the slag scraper and the surrounding slag baffle, and the scum is scraped to the slag hopper and discharged out of the tank.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
